| Categories | Vacuum Sintering Furnace |
|---|---|
| Brand Name: | Ruideer |
| Model Number: | Customizable |
| Certification: | CE; ISO9001; ISO14001; OHSAS 18001 |
| Place of Origin: | Zhuzhou, Hunan Province, China |
| MOQ: | 1 set |
| Price: | 100000.00-350000.00（USD） |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 8 sets/month |
| Delivery Time: | 5-6 months |
| Packaging Details: | Special wooden case |
| Types: | Vacuum Sintering Furnace |
| Allow gas to be introduced: | Ar、N2、H2 |
| Vacuum pump: | Spool valve, Roots pump, rotary vane pump |
| Vacuum leak rate: | ≤0.5pa/h |
| Type: | Fully Automatic |
| Sample test: | On-Site Trial Sintgering Service |
Temperature and atmosphere uniformity: Positive and negative pressure paraffin removal or PEG integration sintering uniformity: furnace control piece (Brand YC40 or YG6 medium granular), evenly distributed.
The buyer shall provide the furnace control piece and the procedure, and the seller shall confirm it.
Cobalt magnetism: testing cobalt magnetism after finished dewaxing
Deviation range:≤±0.2%
Deviation range:≤±0.3KA/M
The temperature uniformity in the furnace is mainly based on the test performance of the furnace control piece.
Power supply:General standard is three phase five wire system AC380V±10% 50HZ.Control power supply:Single-phase AC210V-250V 50HZ design(It can be designed according to local grid standards for different countries and regions)
Temperature measurement mode :WRe5-26 thermocouple
Vacuum Sintering Furnace Technical parameters:
| Specifications | RDE-YTL-336/RDE-DYL-339 | RDE-YTL-450 | RDE-DYL-5518 | |
| Effective space | 300*300*600/ 300*300*900mm | 450*450*1200 | 500*500*1800mm | |
| Max.Temperature | 1600℃ | 1600℃ | 1600℃ | |
| Maximum load | 150Kg/200Kg | 350Kg/400Kg | 1500Kg | |
| Vacuum leakage rate:(Average in cold,empty,dry chamber in 3 hours) | 2Pa/h | 2Pa/h | 3Pa/h | |
| Extreme vacuum | 0.8Pa | 0.8Pa | 1Pa | |
| Wax-collection rate(negative pressure dewaxing process.The maximum average value is 3 furnaces) | 98% | 98% | 98% | |
| Cooling period(Sintering temperature—100℃) | 240min-300min | 300min-420min | 480min | |
| Temperature control mode | 2-zone/3-zone | 2-zone/3-zone | 3-zone | |
| Atmosphere and temperatureuniformity | Com≤±0.25% Hc≤±0.35KA/M | Com≤±0.3% Hc≤±0.4KA/M | Com≤±0.3% Hc≤±0.4KA/M | |
| Input gas allowed | Ar,N2,H2 | |||
| Functions:Vacuun dewaxing,H2 dewaxing,vacuum heating,heating with gas mixture,heating flowing gas,Rapid cooling. | ||||
Vacuum Sintering Furnace Applications
For Cemented Carbide, Precision Ceramics, stainless steel, Iron-based alloy, Copper-based alloy, Aluminum products

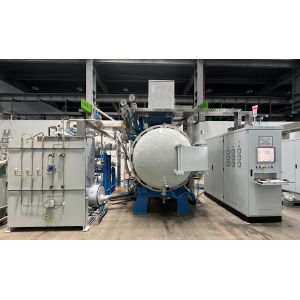

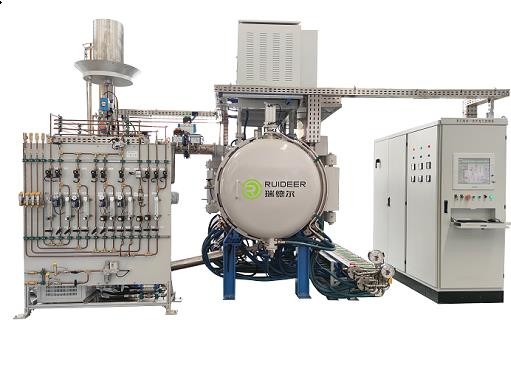

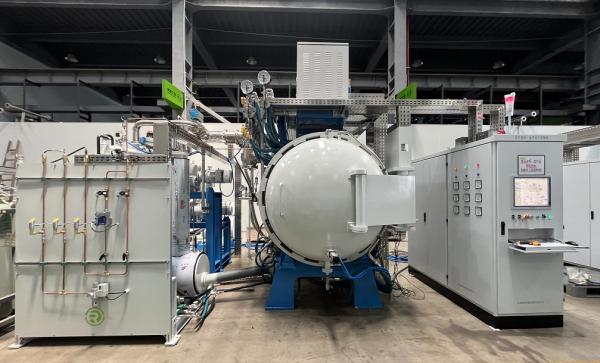

The cemented carbide pressure sintering furnace is a single chamber and double door horizontal and periodic heating structure,which is designed for easy handling and maintenance, the whole process is controlled automatically.It can realize full load continuous operation, 300 furnace times/year or 300 working days/year.It uses graphite element resistance heating (low voltage, high current) .In addition, there are multiple heating units, each of which controls the temperature separately.It equipped with fully automatic control function and safety interlock function.The whole process is automatically controlled, monitored, tracked and recorded by computer.The PLC, industrial computer (IPC) control to realize the whole process of one-key start, real-time dynamic monitoring, computer will save temperature, pressure, vacuum and other parameters ,alarm interlocking is safe and reliable.
|
