| Categories | Industrial Forced Air Heater |
|---|---|
| Place of Origin: | Shandong, China (Mainland) |
| Brand Name: | Ristarch |
| Certification: | ISO9001 CQC CE |
| Supply Ability: | 20000 Piece/Pieces per Month |
| Packaging Details: | Bubble and corrugated carton,1pc / Ctn |
| MOQ: | 30 Piece/Pieces |
| Price: | Negotiable |
| Weight: | 22.3kg |
| Warranty: | 1 Year |
| After-sales Service Provided: | Video technical support, Online support, No overseas service provided |
| Condition: | New |
| Voltage: | 220~240V/50Hz |
| Air Flow: | 735M3/H |
| Heating area: | 200~300㎡ |
| Fuel consumption: | 2.5Kg/H |
| Fuel tank: | 38L |
1. Function on diesel oil or kerosene
2. Streamlined and tough design
3. With flame sensor
4. Stainless steel combustion chamber with fan cooling
5. Durable external powder coating

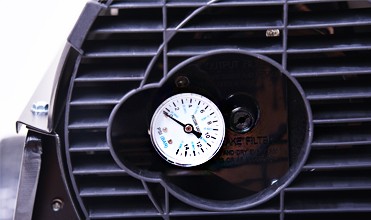

6. Fixed Oil display,If no oil , heater will cut off the power
7. Low pressure atomization,combustion completely
8. Cut-off protection,re-plugged in will not work automatically
9. Fully automatic operation controlled by PCB with room
temperature stat
10.Waterproof grade IPX4
11. Low temperature starting at -40℃
12. Widely used scope,such as poultry farm,vegetation greenhouse,barn,warehouses, factories,construction area,etc.
Diesel Forced Space Heater Specifications | ||||
Model No. | XDFT-20 | XDFT-30 | XDFT-50 | XDFT-60 |
Power | 20KW | 30KW | 50KW | 60KW |
Voltage | 220-240V | 220-240V | 220-240V | 220-240V |
Frequency | 50Hz | 50Hz | 50Hz | 50Hz |
Heat Output(Kcal/H) | 17200 | 25800 | 43000 | 60200 |
Heat Output(Btu/H) | 69000 | 105000 | 170600 | 238840 |
Motor Power | 230W | 230W | 340W | 340W |
Air Flow(M3/H) | 595 | 735 | 1100 | 1300 |
Heating Area(M2) | 100-200 | 200-300 | 300-400 | 500-600 |
Fuel Consumption | 1.7Kg/H | 2.5Kg/H | 4.7Kg/H | 4.9Kg/H |
Tank Capacity | 19L | 38L | 56L | 56L |
Product Size(MM) | 910*455*555 | 980*465*560 | 1130*565*560 | 1130*565*560 |
Package Size(MM) | 940*415*450 | 1035*450*455 | 1180*480*540 | 1180*480*540 |
Net Weight(KGS) | 17.8 | 20.9 | 26 | 26 |
Gross Weight(KGS) | 19.6 | 22.9 | 28.2 | 28.2 |
|
