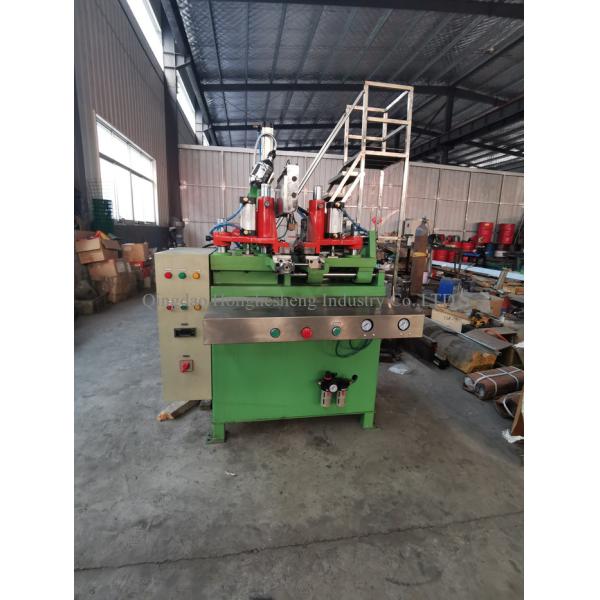

2 Cavity Motorcycle Tyre Bladder Curing Press Machine Inner Tube Making Machine

Categories	Tyre Tube Making Machine
Brand Name:	HHS
Model Number:	LLY-103
Certification:	CE ISO
Place of Origin:	CHINA
MOQ:	1 set
Price:	USD:3000-25000 /SET
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/month
Delivery Time:	20 working days
Packaging Details:	Wood package /20-40 container
TYRE SIZE:	4-18 INCHES motorcycle tyre ,atv
Linng cloth:	400
Nose center height:	850-870
Working air:	0.7-0.9mpa
Curtain roll max diameter:	450mm
Colour:	Green,blue, customize
Operation person:	6-8 workers
Raw material:	Reclaimed rubber
Production capacity:	10000 tires per day
Power (kW):	7.5 kW
Weight (KG):	2500 KG
Voltage:	According to customers' requirement

Contact Now

Add to Cart

Motorcycle Tyre Bladder Curing Press Machine/ Inner Tube Making Machine

1. USES:

capsule vulcanizing press for tire: from bottom to up, capsule vulcanizing, low price, easily repair

2. Paremeter

Model	LLY-60	LLY-66	LLY-103	LLY-135	LLY-135	LLY-160
Tire Size	M/C & S/C	S/C I/D	L/T M/C S/C	L/T M/C S/C	L/T M/C S/C	L/T M/C S/C
Bead Dia. Range	8-18	4-10	8-21	8-21	8-21	8-21
Oil Cylinder Size(mm)	225	200	250	300	300	325
Clamping force (tons)	60	66	103	135	135	160
Platen O.D.(mm)	800	600	883	1000	1067	1100
Mold Thickness(mm)	50-180	130-300	100-230	100-340	100-340	170-400
No. Of Cavity	2
Internal Pressure	Max.22Kg/cm2
Platen Steam	Max.10Kg/cm2
Hydraulic Water	20Kg/cm2
Compress Air	7Kg/cm2
Vacuum	Above 100mm Hg
Curing System	High temperature hot water or steam
