3000M Dual Band Ceiling Mounted Access Point With 1 WAN/LAN Port And 1 LAN Port

Categories Gigabit Wireless Access Points
Brand Name: Sirivision
Model Number: SR-AX3000
Certification: CE, ROHS, FCC, UKCA
Place of Origin: Shenzhen,China
MOQ: 20
Price: Negotiation
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000pcs Per Month
Delivery Time: 5-8 work days
Packaging Details: 1pc in box, 1pc Warranty Card in box
Protocol Standards: IEEE802.11a/b/g/n/ac/ax
Memory: 512M
Weight: <0.55kg
Overall Power: <16W
POE Power supply Standard: 802.11af
Material: imported high-quality PC material
  • Product Details
  • Company Profile

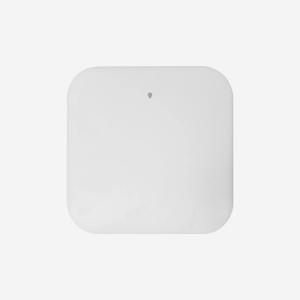

3000M Dual Band Ceiling Mounted Access Point With 1 WAN/LAN Port And 1 LAN Port

Product Description:

The SR-AX3000 is a dual-band ceiling-mounted wireless access point based on IEEE 802.11n technology standard. Equipped with super wireless transmission performance, the transmission rate is adaptive up to 3000 M. The transmitting power is high and the signal strength is stronger, while the transmitting distance is longer.

Features:

  • Supports 48V PoE and DC 12V 1.5A two power supply.
  • It is equipped with 1 10/100/1000M auto-sensing WAN/LAN port, supports 48V POE power supply, and 1 10/100/1000M auto-sensing LAN port.
  • Indicator lights: WAN port light, LAN port light, tricolor light.
  • Provides 2.4G access rate of up to 574Mbps and 5G access rate of up to 2402Mbps.
  • It is installed in a ceiling mount.
  • Protection class is IP31, supports surge protection, 2KV common mode, 1KV differential mode.

Technical Parameters:

AttributesDetails
Main ChipIPQ5018 + QCN6102
FlashSPI NOR 8MB SPI NAND 128MB
Memory512MB
2.4G Operating Frequency Band2.4GHz–2.484GHz
2.4G WIFI Transfer Protocol802.11b/g/n/ac/ax
5G Operating Frequency Band5.150GHz~5.850GHz
5G WIFI Transfer Protocol802.11a/n/ac/ax
Built-in antenna 2.4G2 antennas, high gain: 4.5DBi
Built-in antenna 5G2 antennas, high gain: 4DBi
Maximum wireless speed2.4G provides up to 574Mbps access rate and 5G provides up to 2402Mbps access rate
Interface(WAN/LAN)1个10/100/1000M auto-sensing WAN/LAN port, 48V POE Power supply
POE Power supplySupports standard 802.3af
DC power supplyDC 12V 1.5A
ButtonReset
Status IndicatorsWAN light, LAN light, tricolor light
Maximum power consumption<16W
Product Size186mm*186mm*37mm
Working environmentWorking temperature:-10℃~55℃
Storage temperature:-40℃~70℃
Working humidity:10%~90%RH No condensation)
Storage humidity:5%~95%RH No condensation)
