| Categories | Manual Butt Fusion Welding Machine |
|---|---|
| Brand Name: | MM-Tech |
| Model Number: | SWT-V160/50M |
| Certification: | CE,ISO |
| Place of Origin: | Hebei,China |
| MOQ: | 10 Sets |
| Price: | US$600-US$900 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Sets Per Month |
| Packaging Details: | Plywood Case |
| Usage: | Welding Pe,Pp,Pvdf,Pvc Pipe |
| Power: | 2.3w |
| After-sales service provided: | Engineers available to service machinery overseas |
| Condition: | New |
| Input voltage: | 220V |
| Gross Weight: | 74 kgs |
1.Suitable for butt welding of plastic pipes and fittings made of
PE, PP and PVDF in a ditch in worksite
or workshop.

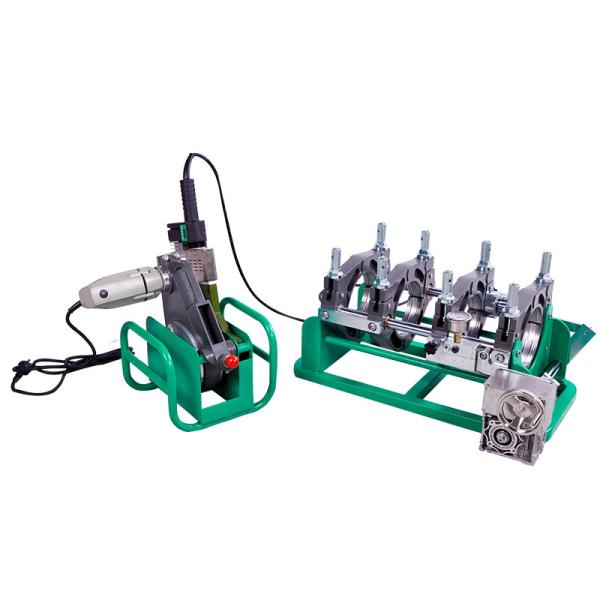

2.Consists of basic frame, hydraulic unit, planing tool, heating
plate, support for planing tool & heating
plate, and optional parts.
3. Removable PTFE coated heating plate with high accurate
temperature control system;
4. Electrical planing tool.
5. Be made of lightweight and high strength material; simple
structure, small and delicate, user friendly.
6.Low starting pressure ensures reliable welding quality of small
pipes.
7.Changeable welding position enables to weld various fittings more
easily.
8.High accurate and shockproof pressure meter indicates clearer
readings.
9.Separate two-channel timer records time in soaking and cooling
phases.
Optional parts:
1. Tube end device for short flange.
2. Data logger.
| Technical Parameters | SWT-V160/50MS |
| Welding Range O.D. | 50,63-75-90-110-125-140-160 mm |
| Power Supply | (110V*) 220V, 50/60Hz |
| Rated Power | 1.8 kw |
| Temperature Range | Max. 300ºC |
| Packing dimension | 450*480*420 mm |
| 380*420*570 mm | |
| Gross Weight | 74 kgs |
All designed according to ISO21307:2011(E),ISO12176-1 and
DVS2207/1(08/2007)
International warranty 24months.
Any parts broken or does not work under normal operating,we are
free to provide.
|
