| Categories | Room Thermostat |
|---|---|
| Brand Name: | Winston/OEM |
| Model Number: | KTO 011 |
| Certification: | CE,ROSH |
| Place of Origin: | China,Zhejiang |
| MOQ: | 1PCS |
| Price: | USD3~4/PCS |
| Payment Terms: | T/T,L/C,Paypal,Online Payment,RMB/USD |
| Supply Ability: | 10000PCS/Month |
| Delivery Time: | 3-15days after get payment. |
| Packaging Details: | Export standard carton box |
| Material: | Plastic |
| Type: | Mechanical |
| OEM: | Yes |
| Sensor element: | thermostatic bimetal |
| Dimensions: | 60 x 33 x 43mm |
Din Rail Small Room Thermostat , Mechanical Thermostat Normal Closed KTO 011
● Large setting range
● Small size
● Simple to mount
● High switching performance
● Compact design
● Wide adjustment range
● Color coded temperature dials
● DIN rail mountable
KTO 011: Thermostat (normally closed); contact breaker for
regulating heaters.
KTS 011: Thermostat (normally open); contact maker for regulating
of filter fans and heat exchangers or for switching signal devised
when temperature limit has been exceeded.
If we want indoor to keep the temperature more or less constant, we have to keep switching our heaters on and off—or, alternatively, rely on clever gadgets called thermostats to do the job for us.
TECHNICAL PARAMETER
Switch temperature difference | 7K (± 4K tolerance) |
Sensor element | thermostatic bimetal |
Contact type | snap-action contact |
Service life | > 100,000 cycles |
Max. Switching capacity | 250VAC, 10 (2) A |
120VAC, 15 (2) A | |
DC 30W | |
Connection | 2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm² |
Mounting | clip for 35mm DIN rail, EN60715 (or for exit filter EF 118 Series) |
Casing | plastic according to UL94 V-0, light grey |
Dimensions | 60 x 33 x 43mm |
Weight | approx. 40g |
Fitting position | variable |
Operating / Storage temperature | -45 to +80°C (-49 to +176°F) |
Operating / Storage humidity | max. 90 % RH (non-condensing) |
Protection type | IP20 |

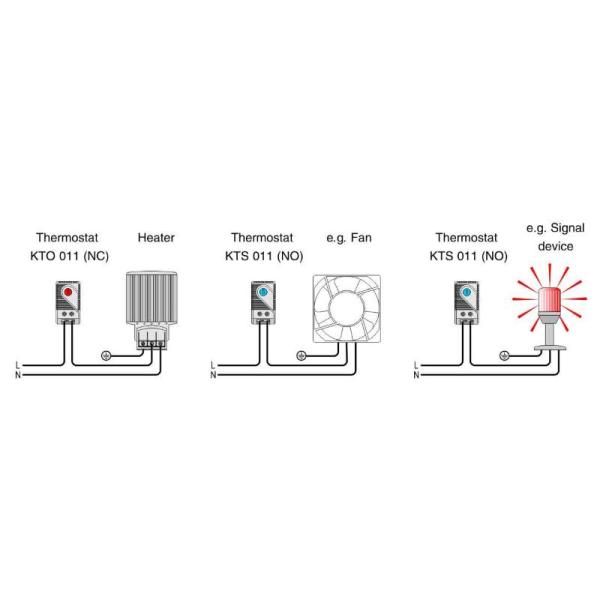

WIRING DIAGRAM
|
