| Categories | Double Girder Overhead Crane |
|---|---|
| Brand Name: | Major |
| Model Number: | QD |
| Certification: | CE/ISO/GOST/SGS/BV/TUV |
| Place of Origin: | Henan, China |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Supply Ability: | 20000 Sets Per Year |
| Delivery Time: | 15days - 100days |
| Packaging Details: | Electric trolley, electricals and other parts are packaged by high quality plywood crates, Main beam packaged by plastic woven cloth |
| Material: | Steels Q235, Q345, etc. |
| Color: | Yello, Blue, etc. By Buyer's Option |
| Power Supply: | 380V 50Hz Three-phase |
| Rated Loading Capacity: | 5~350t |
| Span: | 5--36m |
| Control Method: | Cabin, Pendant Control And Remote Control |
| Product Name: | Overhead Travelling Crane |
| Lifting Height: | 30m |

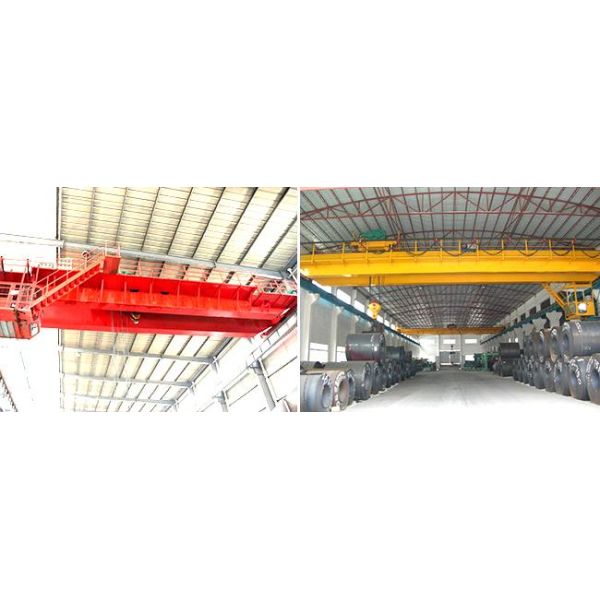

Industrial Double Beam Overhead Crane Travelling Crane
| Mechanism | Item | Unit | Result | |||
| Item | ||||||
| Lifting capacity | ton | 5-350 | ||||
| Lifting height | m | 1-20 | ||||
| Span | m | 10.5-31.5 | ||||
| Working environment temperture | °C | -25~40 | ||||
| Speed | Hoisting | Main | m/min | 0.84-9.5 | ||
| Aux. | 5.22-12.6 | |||||
| crab | 5.8-38.4 | |||||
| trolley | 17.7-78 | |||||
| Working system | A5-A6 | |||||
| Power source | three-Phase A C 50HZ 380V | |||||
double beam overhead crane mainly consists of bridge, trolley travelling mechanism, crab and electrical appliances, and is divided into 2 working grades of A5 and A6 according to the use frequency.
double beam overhead crane can be used to lift loads from 5 tons to
350 tons, which is widely used to upload and move of normal weight in the fixed crossing
space and also can work with various special-purpose hoist in special operations.

|
