| Categories | Armored Fiber Optic Cable |
|---|---|
| Brand Name: | JIANGSU ARMORED |
| Model Number: | 6F-TACTICAL-5.0 |
| Certification: | ROHS |
| Place of Origin: | CHINA |
| MOQ: | 1000M |
| Price: | Negociation |
| Payment Terms: | T/T |
| Supply Ability: | 30km per day |
| Delivery Time: | According to the quantity |
| Packaging Details: | metallic reel , plywood box and pallet |
| Name: | Armored Tactical Fiber Cable |
| Outer jacket: | TPU |
| Color: | Black |
| Application: | Tactical, Military, Broadcasting |
| Fiber Mode: | Single Mode |
| Fiber buffer: | LSZH |
| Feature 1: | Rodent Resistant |
| Feature 2: | Retract and Felease Freely |
| Fiber Size: | 0.6mm tight buffer |
| Fiber Quantity: | 6 pcs |
6 Core 5.0mm Tactical Spiral Armored Fiber Cable, SM Single Mode Black TPU jacket, Military Fiber Cable, Apply for Defense.
Spiral armored fiber cables have good reliability and can resistant to bad conditions. So the armored fiber cable and patch cord can provide good communication and data transmission in harsh environments. so Military and Defense system use armored fiber cable to transimiss data.
Cabe Parameter
| Item | Unit | Dimension | Remark |
| Optic Fiber | mm | 0.60±0.05 | 6pcs SM Fiber |
| Spiral Armored Tube OD | mm | 2.80±0.10 | Stainless Steel |
| Aramid Yarn | decitex | 1100 | |
| Metal Braiding | mm | 0.07mm wire | Stainless Steel |
| Outer Jacket OD | mm | 5.0 ±0.2 | Material: black TPU |
| Attenuation Max. | dB/km | 0.4dB/km@1310nm, 0.3dB/km@1550nm | |
| Temperature | ℃ | -40℃~+90℃ | |
| Bend Radius | mm | Dynamic 20D, Static 10D | |
| Tensile | N | Long-term 200, short-term 400 | |
| Crush | N/10cm | Long-term 1000, short-term 3000 | |

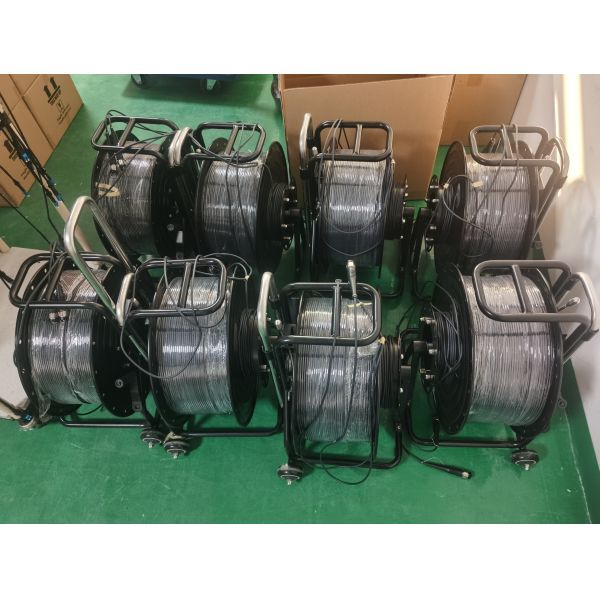

The Armored Fiber Optical Cables are used for tactical patch cord assembly.
