| Categories | Digital Pressure Gauge |
|---|---|
| Brand Name: | Dwyer |
| Model Number: | SFI-100T-1/2-A711T,SFI-100T-3/4-A711T |
| Certification: | CCC,CE |
| Place of Origin: | USA |
| MOQ: | 1 |
| Price: | USD$460/PC |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 |
| Delivery Time: | 6 Weeks |
| Packaging Details: | Original case |
| Service: | Compatible fluids |
| Temperature Limits: | -20 to 212°F |
| Pressure Limits: | 125 psi |
| Viscosity Maximum: | 200 SSU |
| Power Requirements: | 8 to 28 VDC |
| Accuracy: | ±5% of FS |
| Frequency Output Range: | 0 to 100 Hz |
| Mounting Orientation: | Horizontal |
| Electrical Termination: | Black lead: Ground; White lead: 5 VDC out pulse; Green lead: 8 to 28 VDC out pulse; Red lead: 8 to 28 VDC supply |
Product Applications
Features

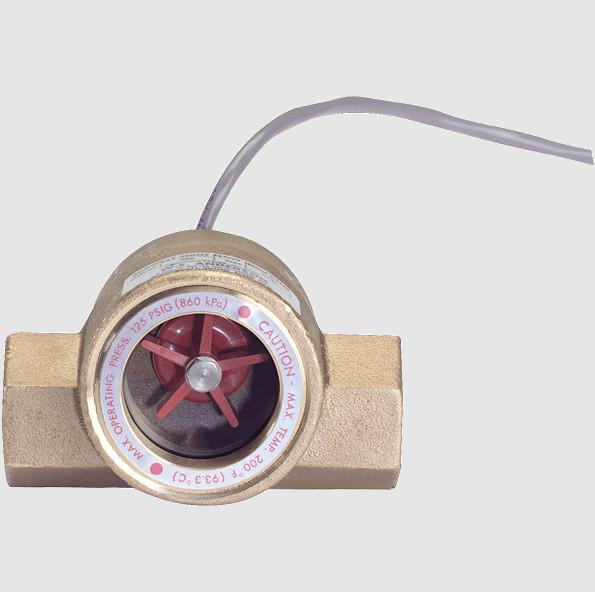

Constructed of a robust, solid brass body and a tempered glass
window
Bright red impeller yields great visual indication of flow through
the window
Front window can be easily unscrewed to clean out the sight flow
indicator
Ideal for outdoor applications with weatherproof body that is
unaffected by UV light
|
