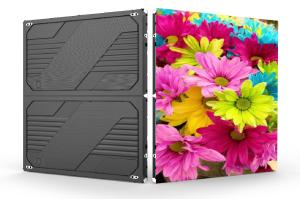

COB Indoor LED Video Wall Immersive Visual Engagement and Applicable Flash Correction Storage with 160° Viewing Angle

COB Indoor LED Video Wall Immersive Visual Engagement and Applicable Flash Correction Storage with 160° Viewing Angle

COB Indoor LED Video Wall Immersive Visual Engagement and Applicable Flash Correction Storage with 160° Viewing Angle
COB Indoor LED Video Wall Immersive Visual Engagement and Applicable Flash Correction Storage with 160° Viewing Angle
Categories Indoor LED Video Wall
Brand Name: TBCLED
Model Number: HD LED Display
Certification: 3C, CE, CB, ETL, FCC, ROHS, CQC
Place of Origin: China
MOQ: 10sqm
Price: Negotiable
Payment Terms: T/T
Supply Ability: 1000 sqm per month
Delivery Time: 25 days
Packaging Details: Playwood Cases
Pixel Pitch: 0.78mm,0.93mm,1.25mm,1.56mm,1.87mm
Panel Size: 600*675*39.5mm
Panel Weight: 7.9kg
Viewing Angle: 160°
Maintenance Way: Front Service
IP level of PCB serface: IP54（Washable by clean water）
Brightness: 600nits
Refresh Rate: 3840Hz
Flash Correction Storage: Applicable
Contact Now
  • Product Details
  • Company Profile

COB Indoor LED Video Wall Immersive Visual Engagement and Applicable Flash Correction Storage with 160° Viewing Angle

COB Indoor LED Video Wall: High-Res Displays for Immersive Visual Engagement

COB Indoor LED Video Wall Product Description

Step into a new era of visual excellence with our COB Indoor LED Video Wall, a cutting-edge solution designed for those who demand nothing but the best in high-definition displays. At the heart of this remarkable product lies the revolutionary COB (Chip on Board) packaging process. Unlike traditional methods, COB technology directly mounts LED chips onto the PCB board, eradicating intermediate connections and welding processes. This not only significantly enhances the brightness and reliability of the LED lamp beads but also streamlines production, leading to cost savings without compromising on quality.


The small pitch of our COB Indoor LED Video Wall is a game-changer. With the distance between adjacent LED beads reaching astonishingly close intervals, even down to the micron level, it offers an unrivaled high-resolution and high-definition display experience. Every detail, every color, and every movement is rendered with stunning clarity, making it perfect for applications where visual precision matters most. Complemented by advanced control technology, our video wall ensures accurate brightness control and true-to-life color restoration, delivering a consistently high-quality visual feast.


Specifications of COB Indoor LED Video Wall


Pixel Pitch0.78mm0. 93mm1. 25mm1. 56mm1.87mm
Module150*168. 75mm
Resolution (dot)192*216160*180120*13596*10880*90
Surface TreatmentMatt COB
Panel Size600*675*39.5mm / 600*337. 5*39. 5mm
Panel Weight7. 9kg ( 600*675mm) / 4kg ( 600*337. 5mm)
Panel Resolution (dot)

768*864/

768*432

640*720/

640*360

480*540/

480*270

384*432/

384*216

320*360/

320*180

Pixel Density(dot/㎡)1,638,4001,137,777640,000409,600284,444
Circuit DesignCommon cathode circuit
Flash Correction StorageApplicable

Brightness of White

Balance

Standard 600nits
Refresh Rate1920~3840Hz
Contrast Ratio10000: 1 (Condition without lighting)
Color Temperature9300K(Standard)
Viewing Angle160°
Input VoltageAC 100~240V 50/60Hz


Max. Power Consumption

(White Balance 600nit)

170W/Panel (600*675mm);

85W/Panel (600*337mm)

150W/Panel (600*675mm);

75W/Panel (600*337mm)

140W/Panel (600*675mm);

70W/Panel (600*337mm)

140W/Panel (600*675mm);

70W/Panel (600*337mm)

130W/Panel (600*675mm);

65W/Panel (600*337mm)

Maintenance WayFront Service
IP level of PCB serfaceIP54(Washable by clean water)
Operating Temperature-10°C-+40°C/10%RH-90%RH
Stroage Temperature-20°C-+60°C/10%RH-90%RII
Certificate3C, CE, CB, ETL, FCC, ROHS, CQC




COB Indoor LED Video Wall Key Features


1.Stunning Visual Performance
The unique structural features of the COB Indoor LED Video Wall elevate the display to new heights. By eliminating intermediate connections, COB technology maximizes light output, resulting in enhanced brightness and vivid color saturation. Moreover, the direct mounting of chips on the PCB improves heat dissipation efficiency, ensuring the video wall maintains stable performance and longevity, even during extended use.

2.Exceptional Durability
Built to withstand the rigors of various environments, our COB Indoor LED Video Wall offers superior impact resistance and environmental adaptability. Its compact and robust structure shields the display from external interference, making it suitable for a wide range of complex applications, from bustling indoor event venues to demanding digital signage installations. No matter the setting, it consistently delivers clear and sharp visuals.

3.Hassle-Free Installation and Maintenance
Installation and maintenance are a breeze with our COB Indoor LED Video Wall. Compared to traditional displays, the COB technology simplifies the installation process, saving valuable time and labor. The modular design further enhances convenience, allowing for easy replacement and maintenance of individual components. This not only reduces operating costs but also ensures minimal downtime, providing a seamless user experience.


COB Indoor LED Video Wall Unique Advantages

  • Ultra-Thin and Lightweight: Tailored to customer needs, different thicknesses of PCB boards can be selected, reducing the weight by up to two-thirds compared to traditional products. This significant reduction in weight translates to lower structural, transportation, and engineering costs, making it an economical choice for various projects.
  • Highly Resilient: The LED chips of the COB display are encapsulated in the concave position of the PCB board and cured with epoxy resin adhesive. The resulting raised, smooth, and hard surface offers excellent collision and wear resistance, ensuring the display remains in pristine condition even in high-traffic areas.
  • Efficient Heat Dissipation: The copper layer on the PCB board acts as an effective heat conductor, rapidly dissipating the heat generated by the LED wick. This efficient heat dissipation minimizes light attenuation and extends the service life of the video wall, providing long-term value.
  • Easy to Maintain: The smooth and hard surface of the screen body is not only resistant to crashes and wear but also incredibly easy to clean. In the rare event of a broken point, it can be repaired on a point-by-point basis, further reducing maintenance efforts and costs.
  • All-Weather Capability: With triple protection treatment, our COB Indoor LED Video Wall excels in waterproofing, 防潮,anti-rot, dustproofing, anti-static, anti-oxidation, and UV resistance. It meets the demanding requirements of all-weather working conditions, ensuring reliable performance in any environment.

COB Indoor LED Video Wall Applications

  • Corporate Presentations: In boardrooms and conference halls, our COB Indoor LED Video Wall brings presentations to life with its high-definition display. Whether it's showcasing financial data, product demos, or marketing strategies, every detail is presented with clarity, enhancing the impact of your message.
  • Entertainment Venues: From theaters to concert halls, our video wall creates immersive visual experiences. It can display high-resolution videos, live performances, and special effects, captivating audiences and elevating the overall entertainment experience.
  • Educational Institutions: In classrooms and lecture halls, the COB Indoor LED Video Wall serves as an excellent teaching aid. It can display educational videos, interactive presentations, and real-time data, making learning more engaging and effective.
