| Categories | IBC Tank Blow Molding Machine |
|---|---|
| Brand Name: | HUAYU |
| Model Number: | HYBM1000-2 |
| Certification: | ISO9001, CE |
| Place of Origin: | CHINA |
| MOQ: | 1 SET |
| Price: | 360000 USD |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1SET 120DAYS |
| Delivery Time: | 4 MONTHS |
| Packaging Details: | be disassembled into many parts for container transportation |
| Output: | 600KG/H |
| Total Power: | 260kw |
| Plc: | SIEMENS |
| Automation Level: | Fully Automatic |
| Key Selling Points: | Long Service Life |
| Mold Type: | Single Station |
| Max. Product Diameter: | 1200 mm |
| Air Consumption: | 3m3/min |
| Extruder Type: | Single Screw |
| Condition: | New |
| Max. Product Height: | 1400 mm |
| Automatic: | Yes |
| Servo Motor: | 57kw |
| Feeder Type: | Vacuum Feeder |
| Die Head Heating: | 90KW |

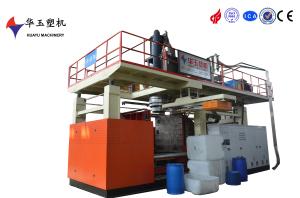

The HUAYU1000L-2 Blow Moulding Machine provides a high-performance solution for manufacturing large plastic containers. It features advanced automation and energy-efficient technology, ensuring high precision and consistent product quality, with a robust construction guaranteeing long-term reliability.
equipment parts | main parameter | brand | |
clamping system | clamping structure | two pull rods, center directly pushing | huayu |
clamping force | 1800KN | ||
platen size | 1700*1800*80mm (W*H*T) | ||
max. mould size | 1400*1600mm (W*H) | ||
distance between platens | 1100-2500mm | ||
pull rod size | φ194mm | ||
clamping cylinder | 1400mm×2,300mm×1 (φ*H) | ||
linear guide | 65mm | hiwin | |
linear guide length | 1600mm× 6 pieces | ||
stroke control | displacement sensor | omron | |
explanation | smooth running, no noise; the clamping force is big | ||
blowing unit | sealing width | according to products | huayu |
stretching stroke | according to products | ||
blow pin up/down stroke | 300mm | ||
air seat stroke | 400mm | ||
maximum air pressure | 0.8Mpa | ||
air consumption | 1.5m3/min | ||
explanation | with pre-blowing function, air blowing pin independent design which relize convenient replacement and multiply usage | ||

|
