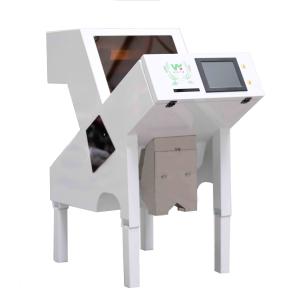

Wenyao 2025 Newest Chinese Factory Optical Ccd Color Sorter Almond Pistachio Cocoa Nut Color Sorting Machine

Wenyao 2025 Newest Chinese Factory Optical Ccd Color Sorter Almond Pistachio Cocoa Nut Color Sorting Machine

Wenyao 2025 Newest Chinese Factory Optical Ccd Color Sorter Almond Pistachio Cocoa Nut Color Sorting Machine
Wenyao 2025 Newest Chinese Factory Optical Ccd Color Sorter Almond Pistachio Cocoa Nut Color Sorting Machine
Categories Nuts Color Sorter
Brand Name: Wenyao
Model Number: WYCS1-64
Certification: ISO9001,ISO CE
Place of Origin: China
MOQ: 1
Price: 6500$-7500$
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 100 PCS/Month
Delivery Time: 3-5 days
Packaging Details: wooden case
Type: Nut color sorter machine
Channels: 64
Weight: 280 KG
Warranty: 2 Years
Power: 1.1 KW
Voltage: 180-220V 50HZ/60HZ
Air Consumption: 200-600 L/Min
Air Pressure: 0.6-0.8 Mpa
Dimension(l*w*h): 800*1556*1274 mm
After-sales service provided: Engineers available to service machinery overseas
Application: Industrial processing sorting
Contact Now
  • Product Details
  • Company Profile

Wenyao 2025 Newest Chinese Factory Optical Ccd Color Sorter Almond Pistachio Cocoa Nut Color Sorting Machine

Product Description
Wenyao 2025 Newest Chinese Factory Optical Ccd Color Sorter Almond Pistachio Cocoa Nut Color Sorting Machine
Color Sorting Machine Function:
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Model
WYCS1-64
Power
1.1 KW
Voltage
180~240 50Hz
Air Pressure
0.6~0.8 MPa
Air consumption
<0.5 m³/min
Dimension
800*1556*1274 mm
* The data of the machine overall dimensions are for reference only, specific dimension will be subject to the installation drawing
Working Principle
Detailed Description of Key Parts
CCD Camera
*5340 linear CCD camera with high precision allows high definition identification and high speed sorting.
*Most advanced ccd technology can sort materials accurately.
*Toshiba CCD sensor
*American process chip
Self-developed Solenoid Valve
*WenYao mechanical ejector with scientific design can make machine work stably for long time.
*A new type of high frequency valve allows for low consumption of electricity , long life reaction speed, high durability, easy
maintenance, and improved color accuracy.
Adjustable LED Light Source
*Configuration of the special light source allows for ten million kinds of color sorting with a fully adjustable colourspectrum.
*Materials can be sorted according to different configurations which is suitable for various sizes of sorting, no need to change
the light source.
Intelligent computing integrated circuit
With unparalleled high performance and low abilityconsumption, the industry's highest Bandwidth andintegration, processing ability increased 5 times.
Humanized interface
*Humanized touch panel, easy to learn, more convenient to operate.Concise touch panel helps customer operate easily and promptly.
*High quality FPGA processing technology, defects of 0.04mm2 can be detected.
Sorting Samples
Packing & Delivery
*Process visualization
From manufacturing to shipment, all processes can be supervised in real time according to your requirements.
And we welcome you to visit our factory in person.
In customer site
In Our Europe Customer Working Plant.

In Our Southeast Asia Customer Working Plant.

In Our South Asia Customer Working Plant.
