Name: Preformed Tension Clamp for ADSS Fiber Optic Cable on Hot Dip Galvanized Flat Iron
Brand: Dowell
Price: 7.40 USD

Home > Tool Processing Services >

Preformed Tension Clamp for ADSS Fiber Optic Cable on Hot Dip Galvanized Flat Iron

Categories	MPO Patch Cord
Place of Origin:	Zhejiang, China
Brand Name:	Dowell
Model Number:	Aerial Cable Accessories
Product name:	Aerial Cable Accessories
Application:	ADSS OPGW Cables
Material:	Stainless Steel, Hot dip galvanized steel
Surface:	Hot dip galvanized flat iron
Heat Treatment:	Quenching,Tempering,Normalizing
Color:	Silver,white
Certification:	ISO9001
Technology:	Forging&Machining
Packing:	Export Wooden Box or As required
Package:	PALLET WOODBOX
Packaging Details:	Normal Package
Port:	Ningbo
Supply Ability:	30000 Piece/Pieces per Week
MOQ:	5 pieces
Price:	$7.40/pieces 5-4999 pieces

Contact Now

Add to Cart

Product Details
Company Profile

Preformed Tension Clamp for ADSS Fiber Optic Cable on Hot Dip Galvanized Flat Iron

Model	DW-AH05
Material	UV resistance Polymer aluminum alloy body with polymer wedge core
Cable range (mm2)	4×16-35
Cable range (mm2)	3-8
Core No.	4
MBL (daN)	300

Short Span ADSS Fiber Optic Cable Preformed Tension Clamp Suspension Clamp ADSS Down Lead Clamp For Pole Power

Preformed Suspension Clamp:
The Preformed Suspension Clamp is the connecting hardware of ADSS cable hang in transmission line pole (tower). It can reduce static stress at the support point and increase ant-vibration ability of ADSS cables, and cushioned against the dynamic stress of aeolian vibration. as well as ensure that the cable bending will not exceed the permissible values, make the cable not produce bending stress, so that the fiber optic don’t produce extra loss in the cables.

Preformed Tension Set :

Preformed Tension Set is widely used for the installation of bare conductors or overhead

insulated conductors for transmission and distribution lines, the reliability and economic performance of the product is better than the bolt type and hydraulic type tension clamp that widely used in the current circuit.
Innovative structure and precision design, so that the preformed tension set has a reliable performance and it is usually made of aluminum clad steel, galvanized steel wire and other materials.

Structure and Raw Material:

Housing Clamp--- It is made of corrosion resistance cast aluminum alloy, which is stable, better anticorrosive in aero and mechanical performance.
Rubber Insert--- It consists of high-class rubber and center reinforcing assembly, rubber insert is with ozone resistance, chemical resistances, weather resistance performance, with high and low temperature performance, high strength and elasticity, small compression deformation.
Bolt, Flat Washer, Spring Washer, Nut, Split Lock, Shackle--- Standard Parts of Electric Power.
Inner Preformed Rods---According to the mechanical performance and chemical composition to custom-made the aluminum alloy wire, with high tensile strength, hardness strength and excellent elasticity and strong rust resistance , it can be used for a long time in the bad weather condition.
Outer Preformed Rods--- The same as the Inner Preformed Rods.

Metal Joint Box for ADSS,OPGW Cable:

Cable Joint Box is designed for splicing ADSS, OPGW cables and the normal cables, including two to four sleeves for input and output.
Loose storage space makes storage more convenient, quickly and cable bending radius big enough, avoiding fiber optic extra loss.
and ensuring transmission performance.
The double sealed designs make Cable Joint Box more reliable. Easy to install and fix on pole(tower) or tubes.

1.Cable Storage Shelf:
Cable Storage Shelf is attended for coiling the surplus cable on the splicing pole.

2.Fix Clamp(GXJ):
Fix Clamp is attended for installing Cable
Joint Box and Cable Storage Shelf one the tower.

3. Stainless Steel Band:
Stainless Steel Band is designed to install
Cable Joint Box and Cable Storage Shelf on poles.

Down Lead Clamp:

Down Lead Clamp is designed to lead down cables on splicing and terminal pole/tower and to fix the arch section on the middle
reinforcing pole/tower. Normally, a unit of Down Lead Clamp is needed 1.5meters, and it is also used in other fixing areas.

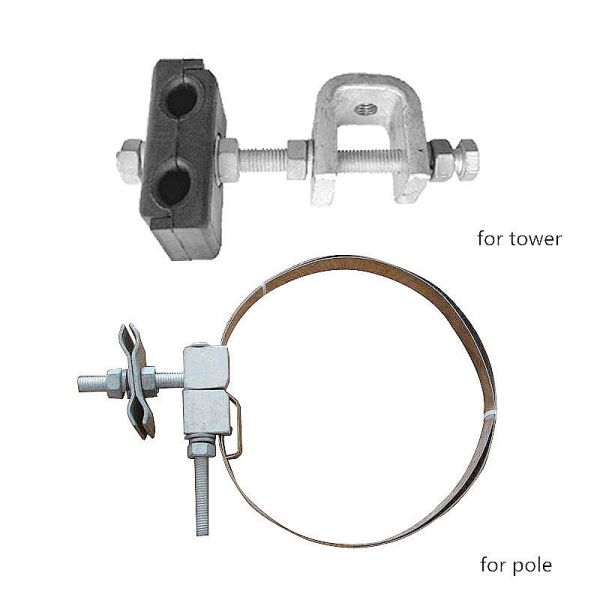

Fastening Clamp:
1. Fastening Clamp for Tower
Series of Fastening Clamps are designed to connect Tension Clamps, Suspension Clamps and towers. It is according to the tower type.
of hanging points and the size of the main material.
2. Fastening Clamp for Pole
Series of Fastening Clamps for Poles are designed to connect Tension Clamps, Suspension Clamps and cement poles, it is according
to the pole type of hanged points and the size of the main material.

Traction Clamp:
Traction Clamp is specially intended for connecting the tightening wires and the cable during the installation of ADSS and OPGW Cables. The Preformed Traction Clamps can keep the cables steady without causing mechanical stress. The structure is simple and
reliable. Traction Clamps can be reused no more than three times.

Application Guide:

1.Traction Clamps are suitable for ADSS and OPGW Cables.
2. Select the Specification of Traction Clamp is according to the cable diameter.
3.Traction Clamps can be reused no more than three times.

All Product Advantage:
1.Light weight
2.Easy to install
3.Hight Quality
4.Against corrosion, can be used for a very long time
5.Warranty & Long life
6.Hot dip galvanized surface tratment, against rust and corrosion

Down Lead Clamp

Preformed Suspension Clamp

1. Q : Are you trading company or manufacturer?
A : 70% of our products we manufactured and 30% do trading for customer service
2. Q : How can you ensure the quality?
A : Good question! We are a one-stop manufacturer. We have complete facilities and over-15- years manufacturing experience to ensure product quality. And we have already passed ISO 9001 Quality Management System.
3. Q : Can you provide samples ? Is it free or extra?
A : Yes, After price confirmation , we could offer the free sample, but the shipping cost need pay for by your side.
4. Q : How long is your delivery time ?
A : In stock: In 7 days; No in stock: 15~20 days, depend on your QTY.
5. Q: Can you do OEM?
A: Yes , we can
6. Q: What is your payment term ?
A: Payment <=4000USD，100% in advance. Payment>= 4000USD, 30% TT in advance, balance before shipment.
7. Q: How we can pay?
A: TT, Western Union , Paypal ,Credit Card and LC
8. Q: Transportation?
A: Transported by DHL, UPS, EMS, Fedex, Air freight, Boat and Train
