| Categories | Roofing Roll Forming Machine |
|---|---|
| Brand Name: | METALIGN |
| Model Number: | GUT |
| Certification: | CE,ISO,etc |
| Place of Origin: | CHINA |
| MOQ: | 1 set |
| Price: | USD1,000-700,000. Based on customization. |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30 sets per month |
| Delivery Time: | 30 days |
| Packaging Details: | Industrial plastic film wrapping, secured with steel wire. |
| Product name: | Custom K-Style Rain Gutter Roll Forming Production Line Chain Driven Hydraulic Cutter |
| Key words: | K-style gutter machine/K-style rain gutter roll former/seamless gutter production line |
| Profile: | Gutter |
| Application: | Residential Roof Drainage / Commercial Building Gutters |
| Material type: | PPGI/PPGL/GI/GL Steel Coils |
| Material thickness: | 0.4-0.8mm |
| Forming speed: | 15-20m/min |
| Main motor power: | 5.5Kw |
| Forming stations: | 18 |
| Driving system: | Chain |
| Frame structure: | Wall panel |
| Shaft diameter: | 70mm |
| Machine condition: | Brand new |
| Shaft material: | #45 steel quenched 55-60℃ |
| Roller material: | High grade #45 steel , surface with hard chrome |
| Display language: | English/Spanish/Russian/French,etc, customizable |
| Control technique: | PLC+Touch Screen |
| Delivery time: | 30 days |
| 1.1 Production Line | ||
This production line targets gutter manufacturers, construction companies, and metal roofing suppliers. It produces high-strength K-style gutters efficiently. Advantages include aesthetic multi-arc designs, precise hydraulic cutting, chain-driven roll forming stability, automated operation, and versatile material compatibility, ensuring consistent quality and broad market appeal. | ||
|
Cut |
PLC |
| 1.2 Profile | |
| K-style gutter profiles are made from galvanized steel or aluminum, thickness ranging 0.5–1.2mm. The shape features multiple curved arcs enhancing strength and visual appeal. Suitable for residential and commercial roof drainage, these gutters offer corrosion resistance, consistent dimensions, and compatibility with various roofing systems. Custom lengths and designs are available. | |
| Material: Galvanized Steel / PPGI / Aluminum | Thickness: 0.3-0.8mm |
| Yield strength: 200 - 350 Mpa | Tensil stress: 200 -350 Mpa |
| 1.3 Production Process | |
Flow Chart: Decoiler → Guide → Roll forming machine → Hydraulic cutter → Out table | |
Process: The roll forming machine shapes metal sheets into precise K-style gutter profiles with multiple arcs. Chain-driven walls ensure stability and consistent quality at high speed. Hydraulic cutting accurately trims profiles to set lengths. The process supports galvanized steel or aluminum, producing aesthetic, strong, and durable gutters for roofing applications. |
| 1.4 Key Focus | |
Multi-arc K-style design enhances gutter strength and aesthetics. | |
Chain-driven roll former ensures smooth, reliable high-speed production. | |
Hydraulic cutter provides precise, consistent gutter lengths. | |
Wall-panel structure increases roll former rigidity and longevity. | |
Automated control reduces labor, improves efficiency, and ensures product consistency. |
| 2.1 Decoiler | ||
| Structure | Double-support |  |
| Working Form | Manual, motorized, or hydraulic | |
| Loading Capacity | 5T/7T/10T, customizable | |
| Coil Width | 1250mm, customizable | |
| Inner Diameter | Φ450 – Φ550 mm | |
| Out Diameter | 1500 mm | |
| Model | DC-MU1 | |
| 2.2 Optional Upgrade: Decoiler | ||
 |  |  |
| Motorized Decoiler | Stand structure decoiler, motorized or hydraulic | Hydraulic decoiler with loading car |
| 2.3 Guiding Device With Pre-Cut Broaching Shear | ||
| Guiding Roller | Adujust the coil feeding width |  |
| Pre-cut Broaching Shear | Cut the steel coil before roll forming | |
| Digital Display | See the feeding width directly | |

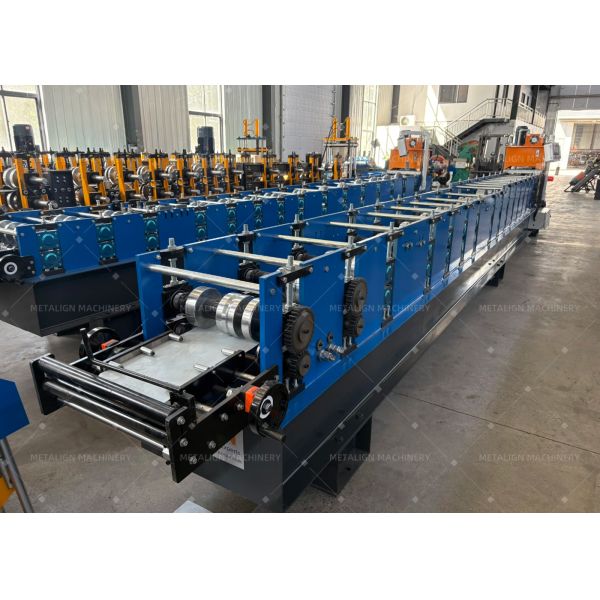

| 2.4 Roll Forming Machine | ||
| Working Speed | Around 20 m/min |  |
| Structure | Wall panel type. Optional: Cast-iron stands or guide pillar | |
| Driving System | Chain system. Optional: Gearbox | |
| No. of Forming Stations | 18 stands | |
| Shaft Diameter | 70mm solid shaft | |
| Motor Power | 5.5 Kw |  |
| Roller Material | 45# steel polished and chromed HRC58-62° | |
| Shaft Material | High grade 45# steel polished(CNC lathe) | |
| Steel Coil Material | PPGI or GI | |
| Steel Coil Thickness | 0.25-0.8mm | |
| 2.5 Optional Upgrade: Cover | ||
 |  |  |
| Mounted On The Inside: No Cover Required | Solid Cover For Chain | Mesh Safety Cover |
| 2.6 Cutter | ||
| Common Power Type | Hydraulic. Optional: motor type. |  |
| Hydraulic Power | 4-5.5Kw, customizable | |
| Blade Material | Cr12 Mov | |
| Hardness | With quenched treatment HRC 58 – 62° | |
| 2.7 Product Collection | |||
| Solution 1 | Run-out table | Solution 2 | Auto stacker |
| Power Type | Non-powered, mainly manual handling | Power Type | Motorized, 3Kw |
| Dimension | Length 4m, customizable | Dimension | Length 4m-6m, customizable |
 |  | ||
| 2.8 PLC Control Cabinet | |||
| PLC Brand | Delta, customizable | Power Supply | 380v, 50HZ, 3Phase (It depends on customer requirement) |
| Encoder Brand | Omron, customizable | Language | Chinese + English, Spanish, French, Russian, etc |
| Touch Screen | MCGS, customizable | Operation type | Manual /auto two-type switch |
| Hanging Arm Type | Saving Space | Standing Type | greater component integration and flexible positioning |
Hanging-Arm Control Box |
Standing Control Box | ||
| 2.9 Hydraulic Power Unit (HPU) | ||
Motor Power | 5.5Kw |  |
| Oil Required | N32 or N46 hydraulic oil is available | |
Design | The hydraulic station has a fan cooling system | |
| Optional | It can be installed on or inside the roll former to save space | |
| 2.10 Analysis | |
| Decoiler | Unwinds metal coil, supports large rolls, ensures smooth feed |
| Guide | Aligns material for precise forming, reduces waste |
| Roll forming machine | Chain-driven, wall panel structure, forms multi-arc K-style gutters |
| Hydraulic cutter | Accurate length cutting, stable hydraulic system, reduces manual work |
| Out table | Collects finished gutters, supports stacking, minimizes damage |
| Component | Quantity |
| Hydraulic Decoiler | 1 set |
| Roll Former | 1 set |
| Hydraulic Cutter | 1 set |
| Out Table | 2 sets |
| PLC Cabinet | 1 set |
| Hydraulic Station | 1 set |
This K-style gutter line can be customized with adjustable roll forming stations for varied arc depths, hydraulic cutter lengths, and material thickness. Optional features include PLC-controlled speed adjustment, chain drive reinforcement, and compatibility with aluminum or galvanized steel. Customers can tailor output to match specific roof profiles or design requirements.
|
