| Categories | Pneumatic Angle Seat Valve |
|---|---|
| Model Number: | Stainless steel body with PPS actuator |
| Brand Name: | NBSANMINSE |
| Certification: | ISO9001 |
| Place of Origin: | CHINA |
| MOQ: | 10PCS |
| Payment Terms: | ,L/C,T/T |
| Supply Ability: | 10000PCS |
| Delivery Time: | 5-30days |
| Packaging Details: | Box |
| Price: | Negotiation |
Can be combined with | Type description | |
 | Type 8644 Remote Process Actuation Control System AirLINE | The externally piloted angle seat valve is operated with a single
or double acting piston actuator. The actuator is available in two different
materials, depending on the ambient temperature. High flow rates are attained
with the virtually straight flow path. The reliable self–adjusting packing
gland provides high sealing integrity. These maintenance-free and robust valves
can be retrofitted with a comprehensive range of accessories for position
indication, stroke limitation or manual override. |

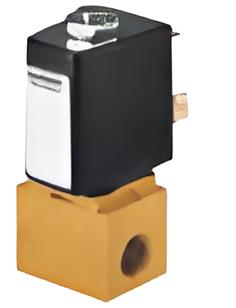

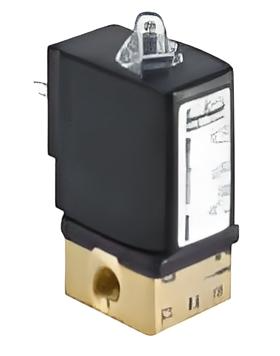

 | Type 8640 Customized Pneumatic Systems Solutions for the Processing Industries | |
 | Type 8697 Pneumatic control for decentralised automation of ELEMENT process valves | |
 | Type 6012 Plunger valve 3/2 way direct-acting | |
 | Type 6014 Plunger valve 3/2 way direct-acting | |
 | Type 8840 Modular process valve cluster - distribution and collecting | |
| Product properties | |

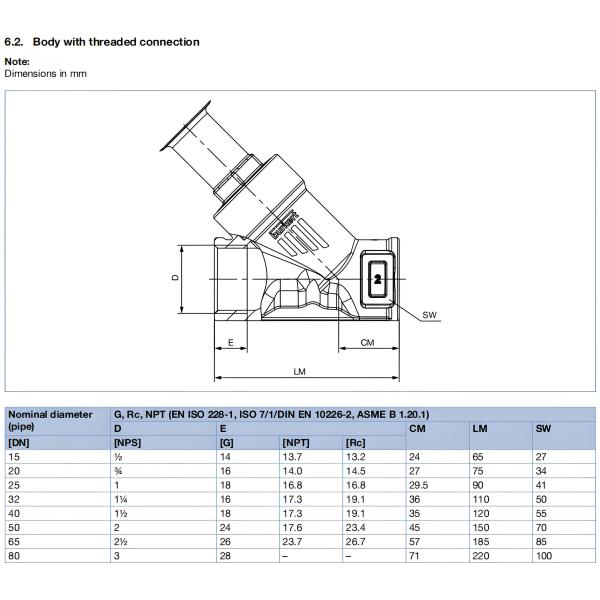

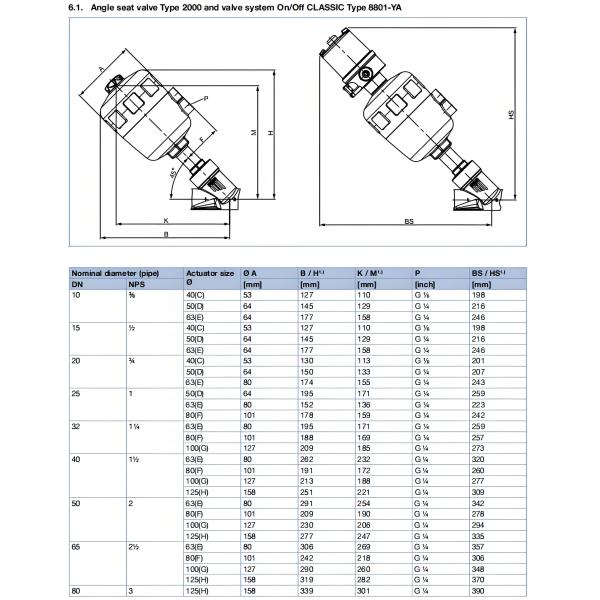

| Dimensions | More detailed infomation can befound in the chapter “6.Dimensions”on page 7. |
| Material | More detailed infomation can be found in the chapter"5.Materials"on page 6. |
| Design | Angle seat valve |
| Port connection size | DN10...DN80,NPS%...NPS 3 |

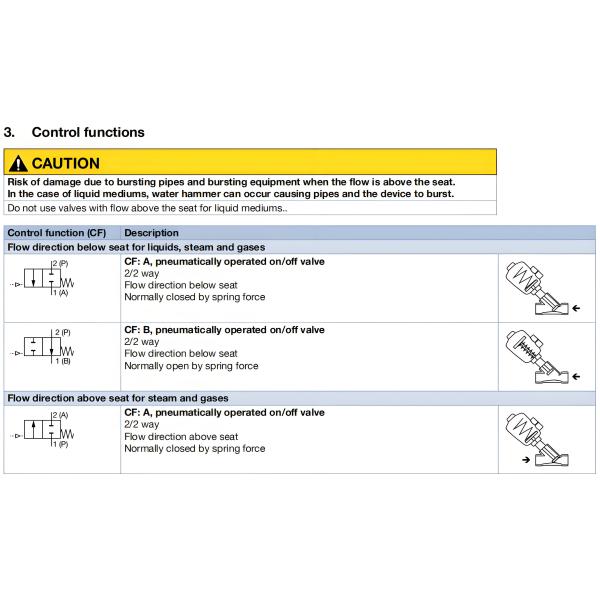

| Safety setting in case of power failure | Nomally closed (control function A),nomally open (control function B) |
| Flow direction | Flow to open (below seat),Flow to close(aboveseat) |
| Performance data | |
| Operating pressure | ...25 bar(g),Vacuum up to-0.9 bar(g)(option,see "7.1.Fluidic data"on page 11 |
| Nominal pressure | PN25(DIN EN 1333),Class 150(DIN EN 1759) |
| Pilot pressure | 2...10 bar(g),see"7.1.Fluidic data"on page 11 |
| K,value | 3.8...140 m³/h |
| Media data | |
| Medium | Steam,water,neutral gases,alcohol,oils,fuels,hydraulic fluids,salt
solution,alkali solutions,organic solvents,for fuel gases of category I,Il andll aoc.to Gas Applianc- es Pegulation (EU)2016/426 and oxygen |

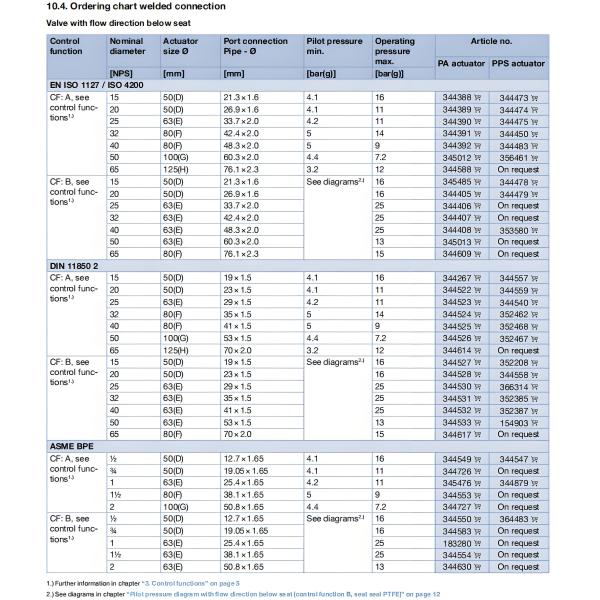

| Medium temperature | -40...230°℃,see"7.2.Operating limits"on page 15 |
| Viscosity | Max.600 mm²/s |
| Control medium | Air,neutral gases |
| Process/Port connection &communication | |
| Port Connections Threaded connection | G(DIN ISO 228-1) NPT IASME B1.20.1) Pc(ISO7-1) |
| Welded connection | DIN EN ISO1127/ISO 4200/DN11866 B DIN 118502/DIN 11866 A ASME BPE/DIN 11866 C SMS 3008 |
| Clamp connection | DIN 32676 B(pipe ISO 4200) DIN 32676A(pipe DIN 118502) ASME BPE |
| Pilot air port | |
| Actuator size 40(C) | Thread G% |
| Actuator size 50(D)...125(H) | Thread G4 |
| Approvals and certificates | |
| Confomity | Food contact 1935/2004(EG),FDA Drinking water Pressure Equipment Directive Gas Appliances Regulation Machinery Directive |
| Approvals | Explosion proof ATEX/IECex |
| Material certificate | 2.2,3.1 |
| Environment and installation | |
| Ambient temperature | -10...140°Csee “2.Product versions”on page 4 |
| Degree of protection | IP67 |
| Installation position | As required,preferably with actuator upright |
| Product properties | |
| Nominal diameter | DN10…DN80,NPS%..….NPS3 |
| Performance data | |
| Operating pressure | ...25 bar(g),vacuum up to-0.9 bar(g)(option),see“7.1.Fluidic data”on page 11 |
| Maximum pilot pressure | |
| Actuator size 40(C),50(D), 63(E),80(F), | 10 bar(g) |
| Actuator size 100(G),125(H) | 7 bar(g) |
| Media data | |
| Medium temperature | -40.…230℃ |
| Product connection | |
| Port connection | Threaded,welded or clamp connection |
| Environment and installation | |
| Ambient temperature | 5...140°℃(continuous operation upto 130℃) (see“7.2.Operating limits”on page 15) |
|
